January, 2022 - PG Collets

Neglecting the maintenance of ER collets like r8 collet, tools, and machines can cause a heavy drop in the performance of machinery. The users of ER collets face many issues like impaired functionality, such as the springiness of ER collets that is not good at all for the final result.

It may also minimize productivity, maximize maintenance costs due to higher scrap rates, and reduce the machine’s potential. Inadequate maintenance of the 5c collets is the primary reason for tool failure before time.

Here are 4 precious advices that can help you to enhance ER Collets life and precision that are given below: –

The best way to keep your collet in good condition for a long time is it’s time to time cleaning. Dust and swarf are occupied on the machine’s tool, tool holder, collet nut, and spindle due to cutting. Over dusting may cause the cutting in an elliptical fashion. To maintain the life span of ER collet can, the user can follow the following steps: –

First, spray the rust-free cleaner on the surface and leave it for a minute.
To clean the surface thoroughly, use the collet brush kit.
Clean the spray with denatured alcohol and make sure that the surface is cleaned.
Now, apply a tiny amount of Lubricant T-9 to avoid further rusting.

The selection of the collet’s diameter is also a significant factor in keeping the collet new. For instance, if you have a cutter of 10mm dia, you prefer using the collet’s 10mm dia hole. If you want to maximize the collet spring’s grip 10 mm and the upper limit is also tightened, choose a 10mm collet for a 10mm shank.
Use the handle according to the spanner. Prefer the standard handle to the bigger or smaller handle as this will give an unwanted extra torque to the chuck that can lead to cracking of thread of nut and eventually break it during functioning.
The replacement of collet chuck is essential at the right time. The average life span of collet chuck is 400-600 hours. If the collet is being used 8 hours a day, it will give good results from 2 to three months. Keep inspecting your collet and its metallic damage like bell mouthing or burrs. If you find any damage, discard the damaged part and replace it with a new one to prevent further damage to other features.

Machinery reduces the human workload, but it also requires time to time maintenance to get the best result. Machines also need care, cleaning, oiling, and repairing, so if you want to increase the life span of your 16c collet, then pay attention to its timely maintenance.

Our Other Products:

Enquire Now

Collet Chucks or collets are utilized principally to hold bar stock, particularly in the more modest sizes. A collet is a round steel shell having three similarly divided cuts broadening most of its length. While there are fluctuating plans, all collet types work by being squeezed over the component to be held, bringing about both exact arrangement and static grinding.

These cuts confer springing activity to the collet. That is the reason collets are otherwise called “spring collets.” The collet nose is made thicker to shape the jaws. The external surface of the nose fits in the shaped opening of the hood.

The collet is made by the state of the work to be held. Collets are significantly more appropriate than a self-focusing hurl on large-scale manufacturing work because of their snappiness in real life and precise setting. The collets might be worked the hard way.

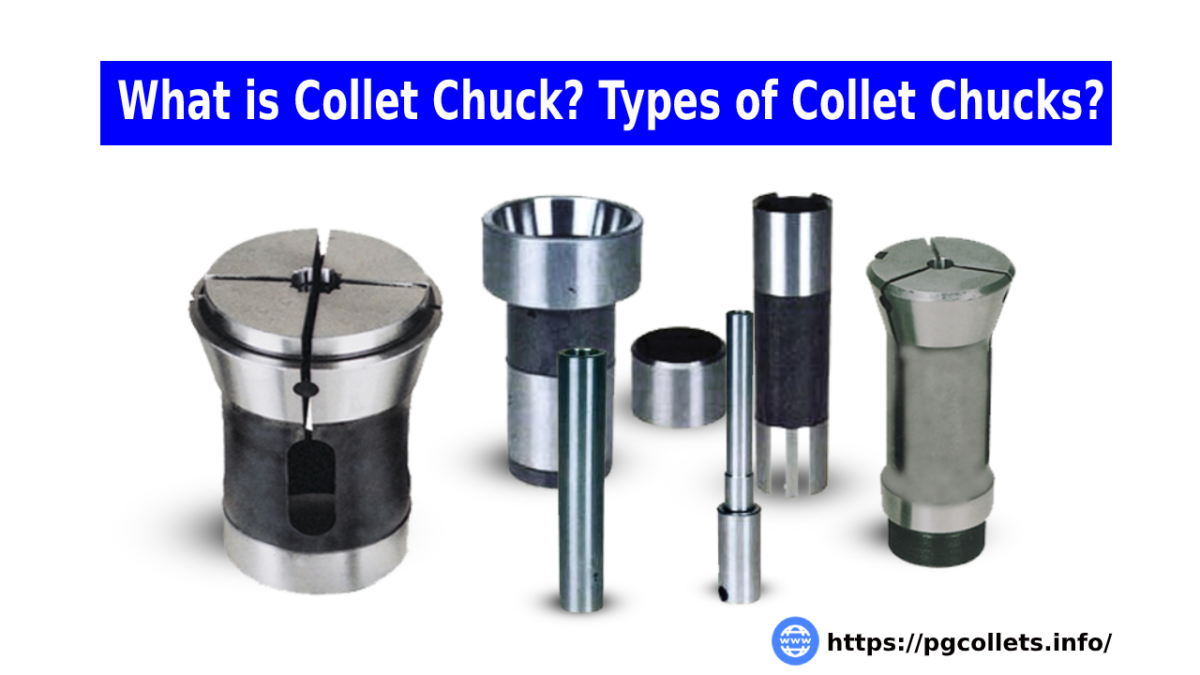

Types of Collet Chuck

Here we Describe 3 Types of Collet Chucks.

Push Out Type Collet Chuck

In this sort of the shape of the collet nose and hood meet towards the right. To grasp the work, the tightened part of the spring collet is driven into the mating draw of the hood—the bar’s propensity to be pushed somewhat outward when the collet is pushed for grasping. Assuming the bar is taken care of against a stop bar fitted on the turret head, this slight outward development of the bar guarantees a precise setting of the length for machining.

Draw in Type Collet Chuck

The shape of the collet nose and hood merge towards the left. To grasp the work, the tightened piece of the spring collet is pulled once again into the mating tighten of the hood, which makes the split finish of the collet close in and hold the bar. The machining length of the bar in this sort of throw can’t be precisely set as the collet, while shutting will draw the bar somewhat internal towards the axle.

Dead Length Type Collet Chuck

For the exact situating of the bar, both the push out and attract type collet present some mistakes because of the development of the bar alongside the collet while holding. This trouble is eliminated by utilizing a fixed collet on the bar.

In this kind, the shape of the collet nose merges towards the left. A sliding sleeve is set between the collet and the hood. This sliding sleeve has a tightened edge that fits on the shape of the collet nose. To grasp the work, the sliding sleeve is pushed towards the right. This makes the collet shut in and grab the bar. The shoulder stop forestalls the end development of the collet.

At PG Collets you can get the robust quality products and assistance from the industry experts. We have years of experience and expertise to offer to our customers.
